Auto-motion

Spindle : ACME or ball screw
Voltage of motor : 12V DC, 24V DC, 36V DC, 110V AC, or 230V AC

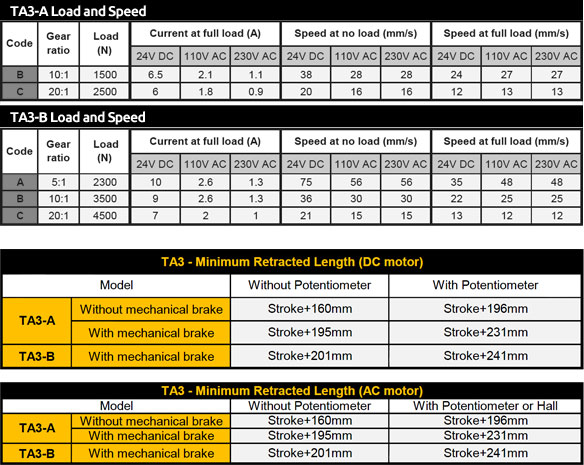

Maximum load : 4,500N in pull/push
Maximum speed : 75mm/s

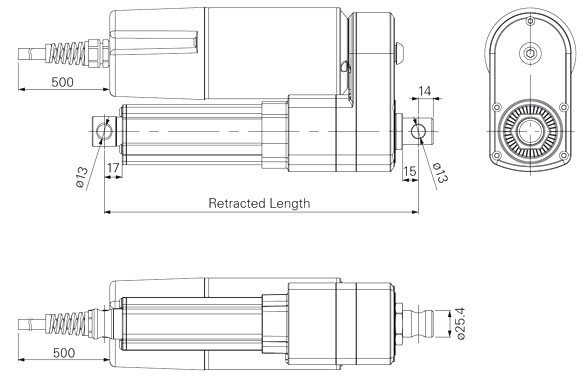

Minimum installation dimension : stroke+160mm (without Potentiometer signals and mechanical brake)
Minimum installation dimension : stroke+196mm (with Potentiometer signals but without mechanical brake)
Color: black
Mechanical or electromagnetic brake
Protection class : IP66
Options : overload clutch, Hall sensor, Potentiometer, manual crank function
Test under change of temperature, dry heat, salt spray, chemicals, vibration,
bump, shock…etc.
Heavy duty cycle (20%)
Corrosion proof
