Comfort-motion / Care-motion / Auto-motion / Ergo-motion

Voltage of motor : 12V DC, 24V DC, or 36V DC
Maximum load : 10,000N in push
Maximum load : 4,000N in pull
Maximum speed : 38mm/s

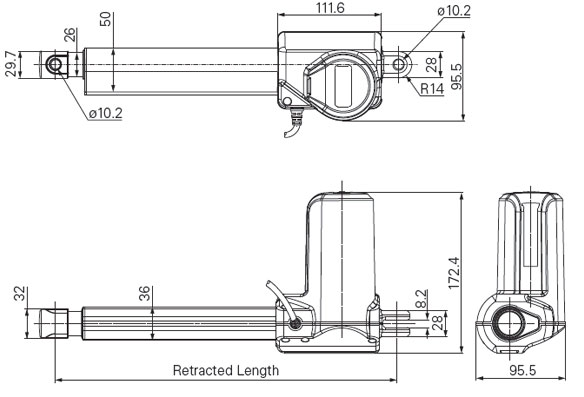

Minimum installation dimension : stroke+163mm
Color : black or grey
Protection class : IP42, IP54, IP66, or without housings
Certificate : CB, EMC, RoHS, UL60601-1, and EN60601-1
Options : freewheeling push only, safety nut, quick release, Hall/Reed sensor
