Tube diameter : Ø 30mm
Input Voltage : 12/24VDC
Max Load Capacity : 200N
Stroke Length : 50mm-300mm
Speed at No Load : 2mm/s -- 11.5mm/s

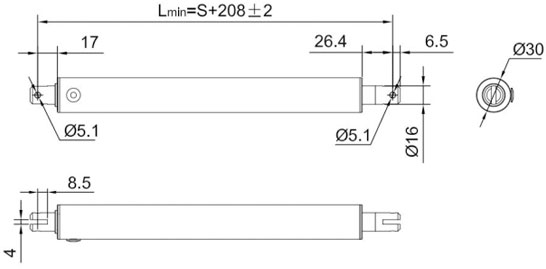

Mini installation dimension : Stroke+ 208mm±2mm
Duty Cycle : 10%( 2 minutes on 18 minutes off)
Operation Temperature : -26ºC~65ºC (-15ºF~150ºF)
Limit Switch : Built-in (Factory Preset) Not movable
IP Grade : IP56
Noise : <50 db
Color : Black or grey
