Tube diameter : Ø 50mm
Input Voltage : 12/24VDC

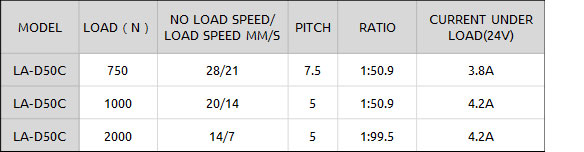

Max Load Capacity : 2000N
Stroke Length : 100mm-700mm
Speed at No Load : 14mm/s -- 28mm/s

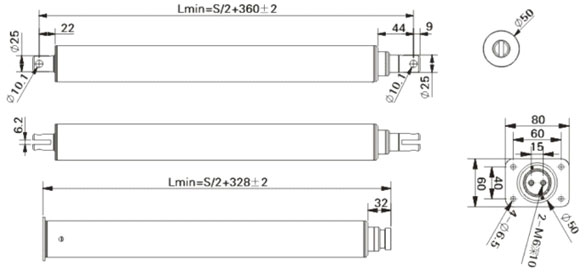

Mini installation dimension : Lmin= Stroke/2 + 360mm±2mm, Lmin= Stroke/2 + 328mm±2mm
Duty Cycle : 10%( 2 minutes on 18 minutes off)
Operation Temperature : -26ºC~65ºC (-15ºF~150ºF)
Limit Switch : Built-in (Factory Preset) Not movable
IP Grade : IP56
Noise : <55 db
Color : Black or grey
